Tannoy CVS 6 coaxial in-ceiling loudspeaker with white grille
Product Description:
Key Architectural & Design Features
-
Coaxial Configuration: Uses a 6-inch mineral-loaded polypropylene mid/bass driver combined with a coaxially mounted 0.75-inch soft dome neodymium tweeter.
-

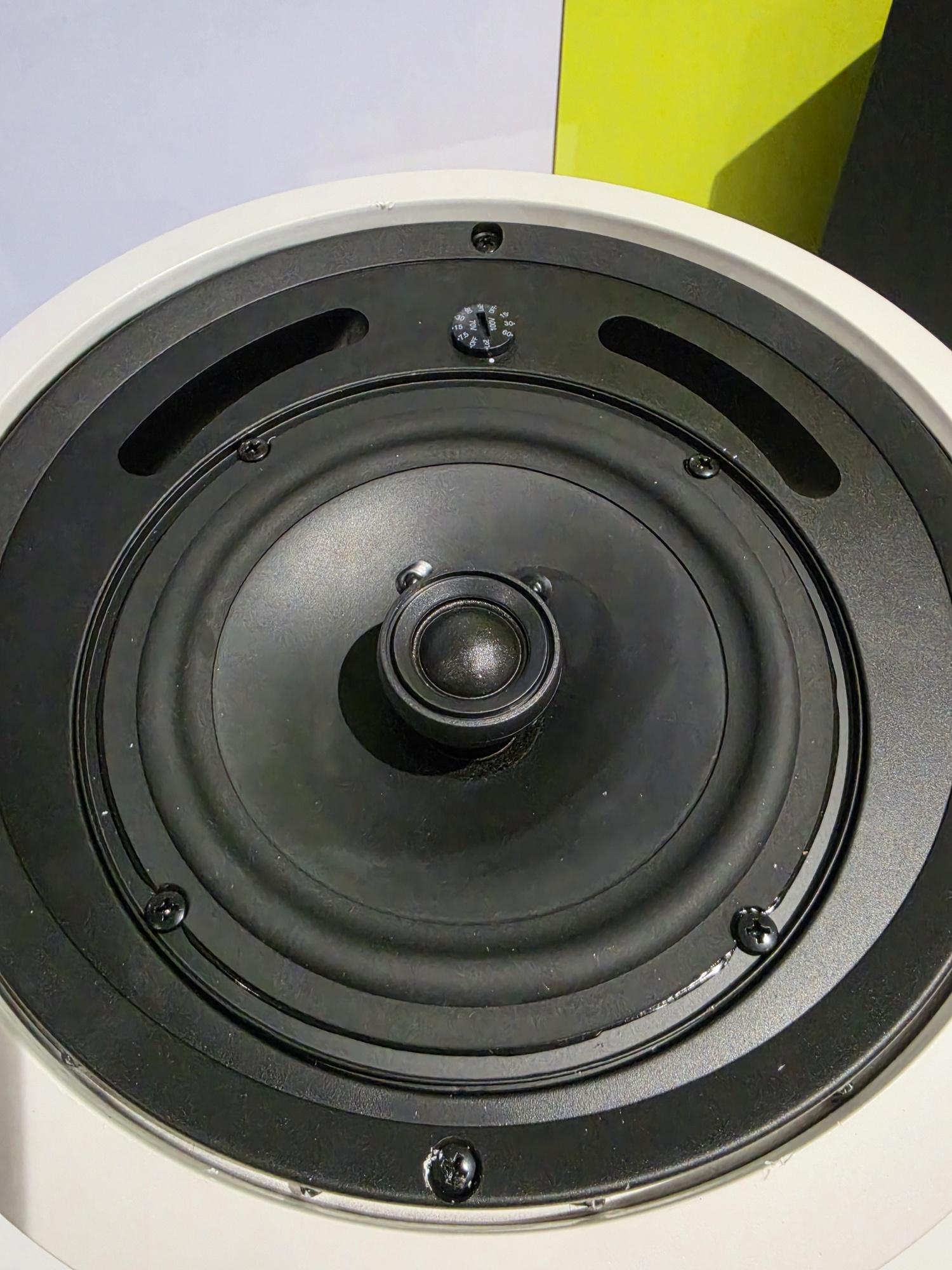

Front-Baffle Wattage Tap Switch: Features a rotary switch accessible directly on the front baffle (visible near the top rim in the photo) to easily toggle between 70V / 100V commercial line transformer taps (60W, 30W, 15W, 7.5W) or a low-impedance direct bypass mode.
-
Reflex-Loaded Baffle: Uses a ported (vented) ABS enclosure design to enhance low-frequency output and acoustic performance.
-
Commercial Safety & Build: Rated for commercial background/foreground sound applications, featuring a fire-resistant ABS baffle with a zinc-plated steel back-can enclosure.
Technical Specifications
| Parameter | Specification |
| Transducers | 6" (150 mm) Mid-Bass / 0.75" (19 mm) Soft Dome Tweeter |
| Power Handling | 60 W Continuous / 120 W Program / 240 W Peak |
| Frequency Response (-3 dB) | 79 Hz – 21 kHz |
| Frequency Range (-10 dB) | 60 Hz – 24 kHz |
| Sensitivity | 91 dB (1 W @ 1 m) |
| Nominal Impedance | 6 Ohms (in low-impedance bypass mode) |
| Transformer Taps |
70 V: 60W / 30W / 15W / 7.5W
100 V: 60W / 30W / 15W
|
| Coverage Angle | 90° Conical |
| Cutout Diameter | 250 mm (9.8") |
| Bezel Diameter | 279.5 mm (11.01") |
| Was | R 4,550.00 |
| Now | R 750.00 |
| Save | R 3,800.00 |
