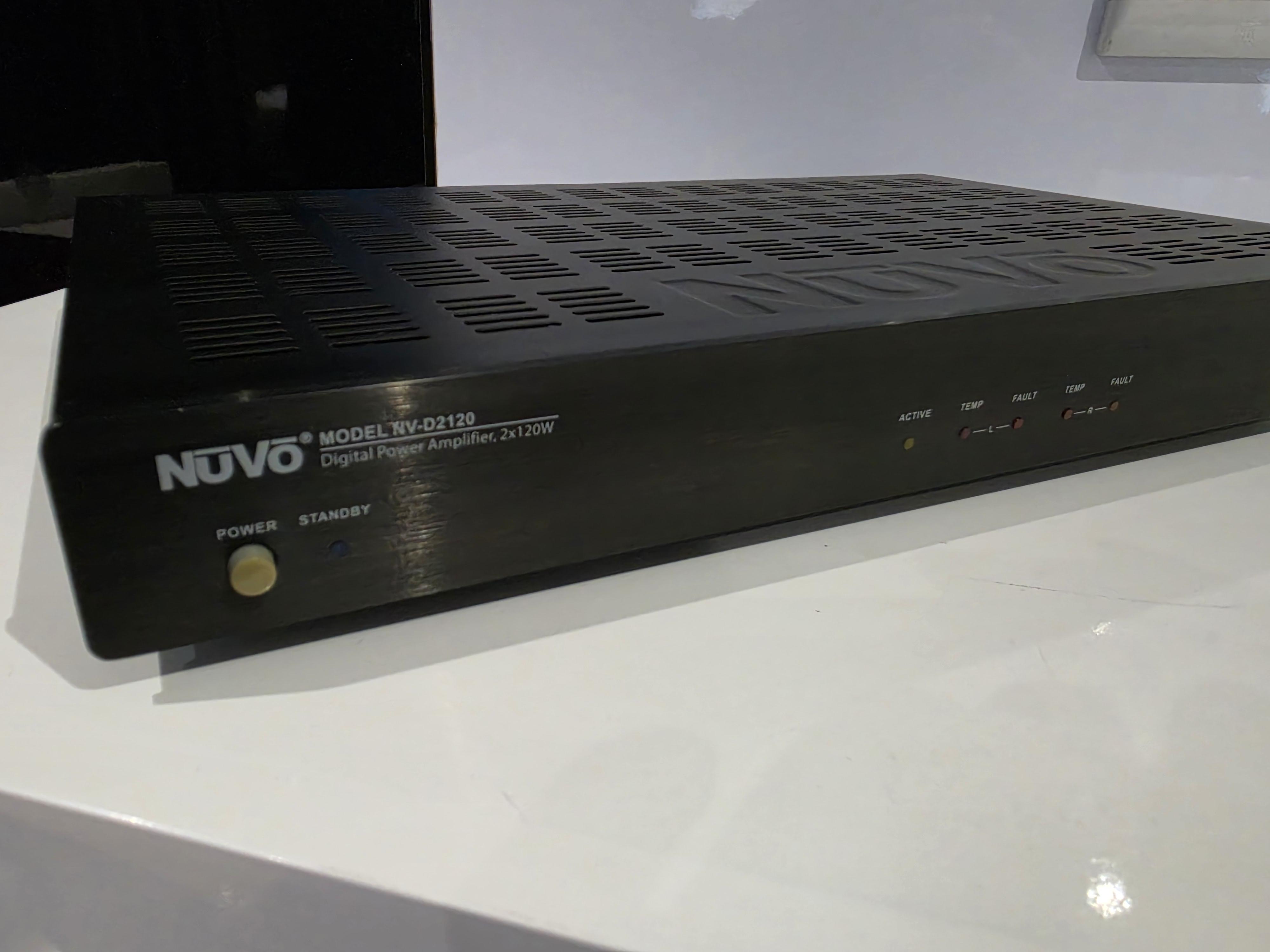

NuVo NV-D2120 Digital Power Amplifier
Product Description:
2-channel, high-efficiency Class D stereo amplifier designed for custom home audio installations and multi-room distributed audio systems.
Key Features
-
High-Efficiency Class D Topology: Provides 240 Watts total output power while maintaining low heat output and a slim 1U rack profile.
-
Energy Star Qualified: Consumes less than 1 Watt in standby mode.
-
Selectable Impedance: Switch-selectable output mode for 4-Ohm or 8-Ohm speaker stability.
-
Flexible Power-On Modes: Can be triggered via audio sense, 3–30V AC/DC voltage trigger, or standard power switch.
-
Front Panel Diagnostics: LED indicators for Power, Standby, Active status, as well as Temp and Fault warnings per channel.
Technical Specifications
| Parameter | Specification |
| Power Output | 120 W RMS per channel @ 4/8 Ω (20 Hz – 20 kHz, <1% THD) |
| Total Harmonic Distortion | 0.02% (at 1/2 rated power) |
| Frequency Response | 20 Hz – 20 kHz (±1 dB) |
| Damping Factor | > 50 |
| Input Sensitivity | 0.3 V – 2.0 V RMS |
| Input Impedance | 22 kΩ |
| Trigger Input / Output | In: 3–30V AC/DC | Out: +12V DC @ 100mA |
| Power Supply | Universal 100–240V AC, 50/60 Hz |
| Dimensions (H x W x D) | 44 mm x 430 mm x 250 mm (1.75" x 17.0" x 9.875" / 1U Rack) |
| Weight | 3.0 kg (6.6 lbs) |
| Was | R 15,500.00 |
| Now | R 6,000.00 |
| Save | R 9,500.00 |
