Description

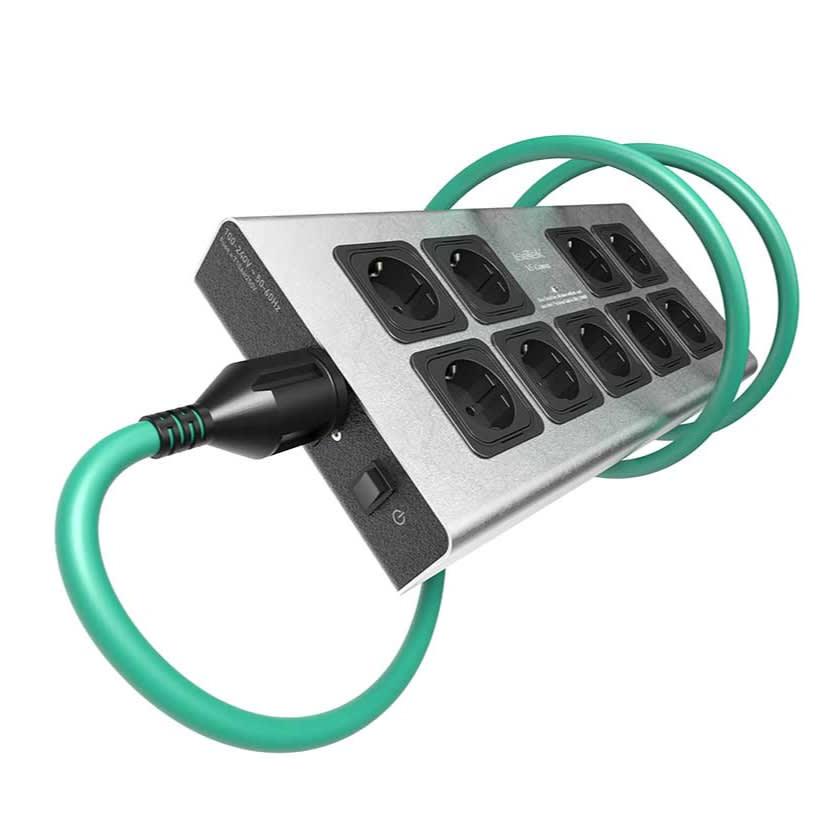

The IsoTek V5 Corvus is an ideal solution for anyone who is looking to upgrade their audio or audio-visual system without breaking the bank. It offers a cost-effective way to improve the performance of your system while also protecting it from any potential damage. The Corvus offers nine independent outlets, which prevent cross-contamination of Differential Mode mains noise, allowing you to get the most out of your audio components. It utilizes multi-strand 6n OFC silver-plated internal wiring with FEP dielectric and a System Link outlet for extending the outlets. Finally, it comes with IsoTek’s award-winning Initium power cable, providing a complete power quality solution for your audio system.

Features

• Suitable for all audio or AV systems
• RFI reduction 35dB
• Central clean power network removes Common and Differential Mode mains noise
• 9 independent outlets stop Differential Mode cross contamination
• 45’000A instantaneous protection
• Fully star-earthed network
• Multi-strand 6n OFC silver-plated internal wiring with FEP dielectric
• System Link outlet for extending the outlets and maintaining a starred earth reference
• Supplied with IsoTek EVO3 Initium power cable
• UK outlets

Design

The IsoTek V5 Corvus is the perfect solution for superior power cleaning performance in your audio setup. Measuring just 380mm in length, 170mm wide and 50mm in height, the V5 Corvus is compact and discreet. It features nine individually isolated outlets to prevent cross-contamination of mains noise.

The unique delta filter topology offers more than 20dB power cleaning at 1kHz, which is then improved to 42dB at 10kHz – when radio frequency interference (RFI) starts to have an impact on performance. The internal wiring is of the highest standard, with pure 6n oxygen free copper conductor strands silver-plated for low resistance and high amperage.

IsoTek’s KERP © system and an aerospace grade Fluorinated Ethylene Propylene dielectric, provides maximum power cleaning performance. The V5 Corvus features a wall hanging bracket system included for easy mounting of the product behind your equipment rack.

For added assurance, the V5 Corvus has instantaneous protection to 45’000A, ensuring both the circuit and your connected equipment are safe. The System Link outlet also allows for connection to multiple units.

Specification

• Number of outlets: 9 + System Link
• Type of outlets: UK
• Mains inlet: 10A IEC C14
• Mains voltage: 100-240V / 50-60Hz
• Maximum current – 10A HRC
• Total Wattage – 2,300W (@230V) / 1,150W (@115V)
• SYSTEM LINK: x1
• Surge protection: 45,000A
• Dimensions (W x H x D): 170 x 50 x 380mm
• Weight: 1kg
• Colour: Silver
