High-power 140W integrated amplifier

Drive your loudspeakers with 140 Watts of power per channel into 4 Ohms. This integrated amplifier offers compatibility with the widest range of speaker types and impedances for operational stability.



Advanced AL32 Processing Plus

Advanced AL32 Processing Plus supports digital audio sources up to a high resolution of 384-kHz/32-bit. The algorithms restore information that was lost during the digital recording to ensure detailed playback.



USB-DAC

PMA-1700NE provides a USB-DAC function that supports high-resolution audio signals up to 11.2-MHz DSD and 384-kHz/32-bit PCM. These digital signals with suppressed jitter will get passed on to the high-quality DAC for an optimal D/A conversion with the highest precision.



TECHNICAL SPECIFICATIONS:

General

• Unit (W x D x H) 434 x 410 x 135mm, 17.1 x 16.1 x 5.3in
• Cabinet Size (W x D x H) 434 x 374 x 135mm
• 17.1 x 14.7 x 5.3in
• Net weight: 17.6kg 38.8lb
• Packaging Dimensions (W x D x H): 548 x 520 x 249mm, 21.6 x 20.5 x 9.8in
• Packaging gross weight  20.4kg, 45lb
• Carton Color: 2 Color
• Cushion / Packing: 4 Separate / Sheet
• Panel Color: SP / BK
• Front (Center) Panel: Aluminum
• Side cover: SECC with 4 straight emboss
• Side screw: SP: Nickel / BK: Black
• Rear Panel: SECC t1.0mm
• Chassis Material: SECC t1.2mm
• Bottom Layer: Single
• Volume Knob: Aluminum
• Input Selector: Aluminum
• Bass/Treble/Balance/ Phono Sel knobs: Aluminum
• Power button: Aluminum
• Other knob/button (LOUDNESS, SOURCE DIRECT etc): Mold (Source Direct,Analog Mode,MM/MC)
• Foot: ABS resin with rigid rib
• w/Hot stamp
• (H : 20mm)
• Heatsink for Power Amplifier: Extruded Aluminum



Specifications:

• Rated Output Power: 70W + 70W
• (8ohm,20Hz-20kHz,THD0.07%)
• 140W + 140W
• (4ohm, 1kHz, THD0.7%)
• Speaker Impedance: A or B : 4 ~ 16ohm, A + B : 8 ~ 16ohm
• Frequency Response: 5Hz - 100kHz (0~ -3dB)
• Total Harmonic Distortion: 0.01 % (Rated output: –3 dB, 8 ohm/ohms, 1 kHz
• Dumping Factor: 100 and over
• Input Sensitivity: Phono input: MM: 2.5 mV / 47 kohm, MC: 200
• RIAA Deviation: 20 Hz - 20 kHz ±0.5 dB (MM/MC)
• Phono Maximum Input: MM : 130mV / 1kHz, MC : 10mV / 1kHz
• Input Sensitivity: CD/LINE/RECORDER: 125 mV / 19 kohm
• Input Sensitivity: Power Amp input: 0.85V / 47kohm (EXT. PRE)
• Signal to Noise Ratio: PHONO (MM): (89dB)
• PHONO (MC): (74dB)
• CD: (107dB)
• Tone Control BASS : 100Hz ±8dB
• TREBLE: 10kHz ±8dB
• Power Consumption: 295W
• at Standby: 0.2W TV autoplay off
• 0.4W TV autoplay on
• Audio Feature
• Power Amplifier Circuit  New UHC-MOS
• Single Push Pull (7)
• Power Trans: Dual El Core
• Pre Amplifier Circuit: Variable Gain Preamplifier
• (OP AMP)
• Volume Electric
• (MUSES 72323)
• Bass / Treble / Mid / Balance Control: Yes / Yes / No / Yes
• Type of Tone Control: Electric
• Controlled by Potentiometer
• Headphone Circuit: Use Power amplifier
• Source Direct: Yes
• Analog Amp Mode: Yes (button on front panel)
• Other: 70
• DAC Circuit: PCM1795
• Digital Filter: Fixed
• Digital Processing: Advanced AL32 Processing Plus
• DAC Master Clock Design (Not Support Network Playback): Yes
• Asyncronous mode (for USB-B input): yes
• Isolator (for USB-B input): Yes
• Full Isolation

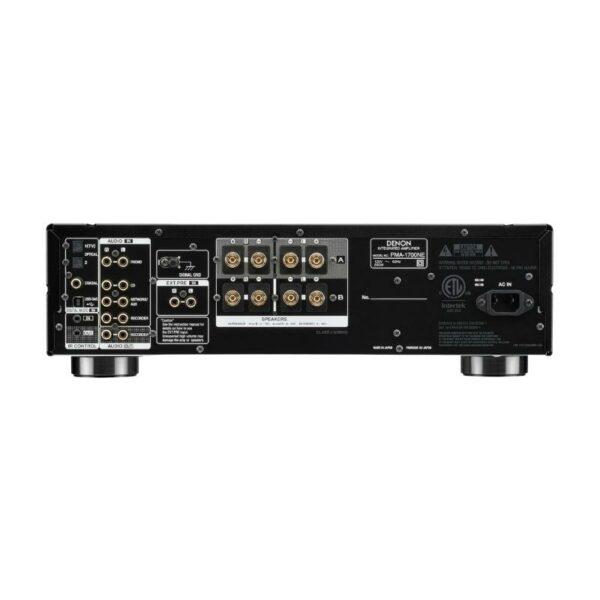

• Connectivity
• Phono Input: Yes (MM / MC)
• *default=MM
• Analog Input (include Phono) / REC Out (RCA): 4/1
• (PHONO / CD / NETWORK ,AUX/ RECORDER)
• Optical input / output (Maximum Support): 2 / 0 (192kHz/24bit)
• Coaxial input / output (Maximum Support): 1 / 0 (192kHz/24bit)
• Ext. Pre Input (Power Amp Direct): Yes(Ext.Pre)
• 2 sets of Speaker Output: Yes (Bi-wiring)
• Speaker Terminal: Gold Plated
• Headphone Output: 1
• (Turn off the speaker when inserting headphone)
• Remote Control Bus Terminal: Yes (mini)
• AC Inlet : Yes
• Wi-Fi: No
• HEOS: No
• USB B (USB DAC): 1 (Rear)
• Module or Main Device New XMOS
• (XU210-256-TQ128 )
• PCM Sample Rate: ~384kHz/32bit
• DSD Audio Streaming (DoP): ~11.2MHz
• Roon Certificaton: Yes(Roon Tested)
• TBD



Control:

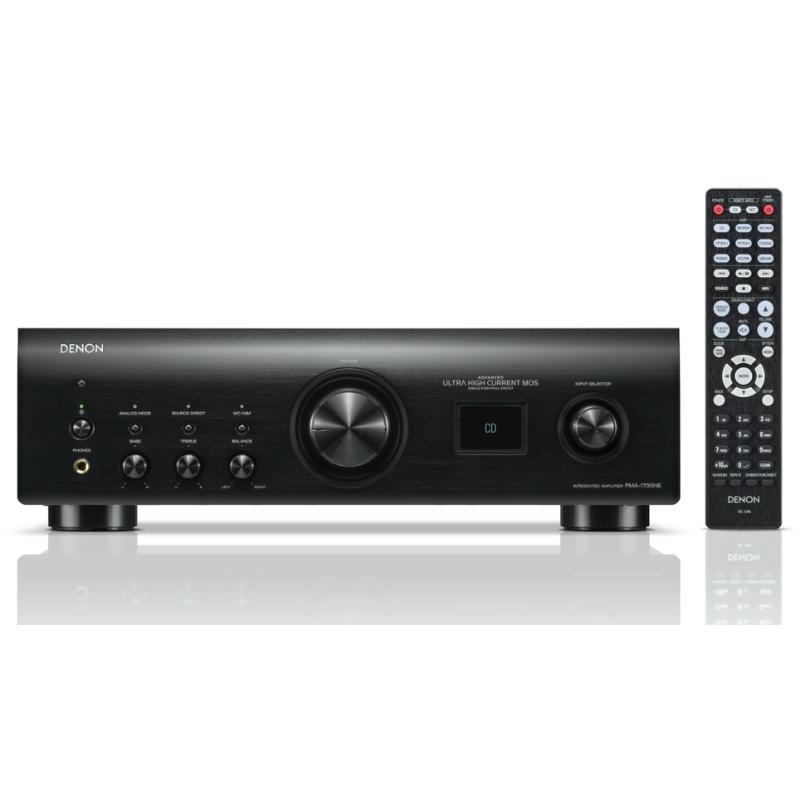

• Remote Controller: System Remote
• (w/CD Player Control)
• Unit control (Button): Push Switch: 1



POWER:

• Tact Switch: 3
• ANALOG MODE, SOURCE DIRECT, MM / MC
• Unit control (Knob): 5
• VOLUME, INPUT SELECTOR, BASS, TREBLE, BALANCE
• LED POWER: 1 Red / Green
• ANALOG MODE: 1 Green
• SOURCE DIRECT: 1 Green
• MM / MC :1 Green
• Front Panel Display: Yes
• (OLED 128 x 100 dot)
• MXS4036-A
• Display Language: Alphabetical
• Dimmer for Front Display: Bright / Dim / Dark / Off
• Control with App via Network Player (Use Remote Control Bus): Yes
• TV Auto-play (Opt/Coax digital-in detecter): Yes
• Last Function Memory: Yes
• Auto Standby Mode: Yes
• Owner's Manual: Web Manual
• E2: (English, German, French, Italian, Dutch, Spanish,
• Swedish, Polish, Russian)
• E3: (English, French, Spanish)
• E1C: (Simplified Chinese)
• JP: (Japanese)
• Paper
• JP: (Japanese)
• Quick Start Guide: Paper
• E2: (English, German, French, Italian, Dutch, Spanish,
• Swedish, Polish, Russian)
• E3: (English, French, Spanish)
• E1C: (Simplified Chinese)
• JP: (Japanese)
• Remote Controller: Yes
• Battery Yes (AAA x2)
• Power Cord: Yes
